WIEDERVERWENDBARE KLEMME / GRBWS-E
GRBWS-E / Kabelhalter Wiederverwendbar
Lösbare Chassisklemme / Kabelhalter
Eigenschaften
- Einfache Demontage.
- Runde Befestigungslöcher ermöglichen eine einfache Montage / Demontage.
- Dauerhafte Fixierung des Bauteils durch spezielle Konstruktionsweise.
Material
- Nylon 66 (Farbe: Weiß)
Ausführungen

GRBWS-E Type I
Part No. | Type | A | B | C | D | E | Mounting hole size | Panel thickness |
---|---|---|---|---|---|---|---|---|
GRBWS-0306E-V0 | I | 5.7 | 2.5 | (8.3) | (12.4) | 4.5 | Ø3.5+-0.1 | t0.5~1.6 |
GRBWS-0409E-V0 | I | 9.0 | 4.0 | (10.4) | (16.2) | 4.5 | Ø3.5+-0.1 | t0.5~1.6 |
Unit: mm

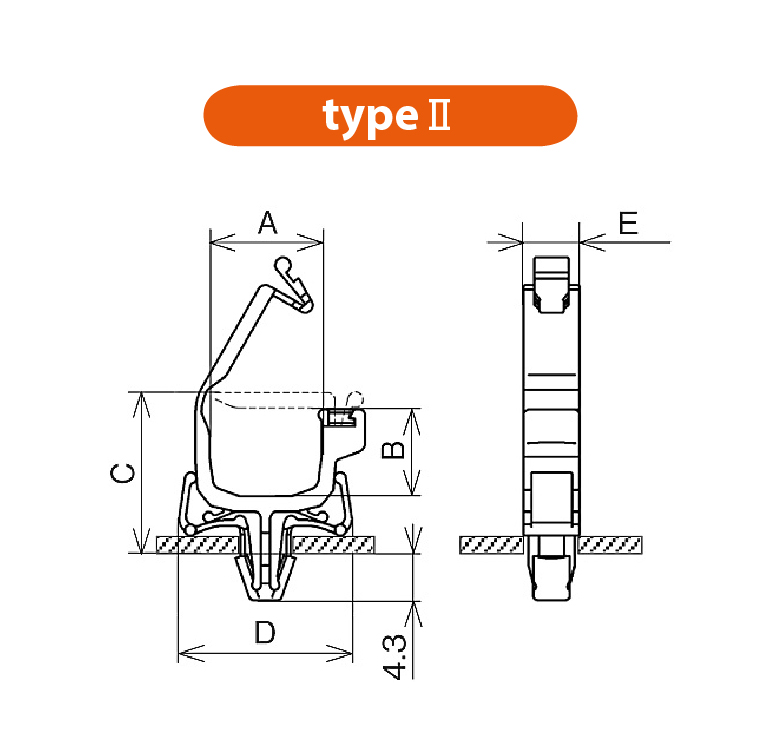

GRBWS-E Type II
Part No. | Type | A | B | C | D | E | Mounting hole size | Panel thickness |
---|---|---|---|---|---|---|---|---|
GRBWS-0610E-V0 | II | 10.0 | 6.0 | (13.9) | (17.4) | 5.5 | Ø4.8+-0.1 | t0.5~2.0 |
GRBWS-0911E-V0 | II | 11.0 | 8.5 | (16.4) | (17.0) | 5.5 | Ø4.8+-0.1 | t0.5~2.0 |
GRBWS-1212E-V0 | II | 12.0 | 12.0 | (20.3) | (17.0) | 5.5 | Ø4.8+-0.1 | t0.5~2.0 |
GRBWS-1416E-V0 | II | 16.0 | 14.0 | (22.6) | (21.2) | 5.5 | Ø4.8+-0.1 | t0.5~2.0 |
GRBWS-20206E-V0 | II | 20.0 | 20.0 | (28.7) | (25.2) | 5.8 | Ø4.8+-0.1 | t0.5~2.0 |
Unit: mm
