OGP SERIES / ON BOARD PLATE

OGP configuration ensures reliable contact

Features

  • OGP solves contact failure problems caused by solder flux.
  • Reliable contact is provided at FG reinforcement of PC board.
  • Eliminates continuity failure caused by pattern scraping between a PCB and pogo pins and a PCB and a metal plate.
  • OGP-2520 is 40 % or more downsized from OGP-4520. (Product size: 2.5 mm)

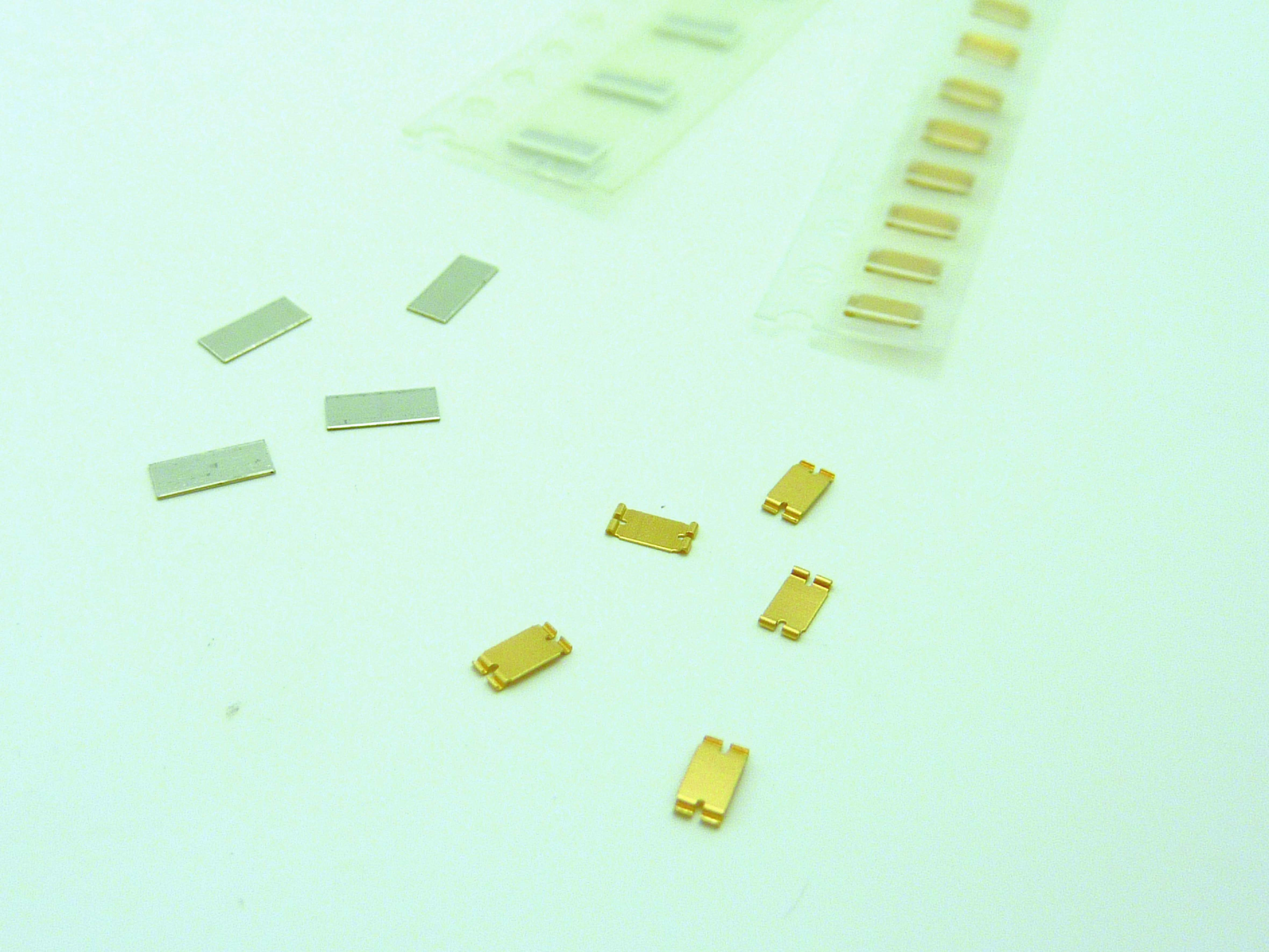

ON-BOARD PLATE／OGP-2520 ,-3216, -4520

OGP solves contact failure problems caused by solder flux.

Part No.MaterialHeight
OGP-2520Brass (Sn reflow plating)0.15 mm
OGP-3216Brass (Au plating)0.3 mm
OGP-4520Brass (Sn reflow plating)0.15 mm

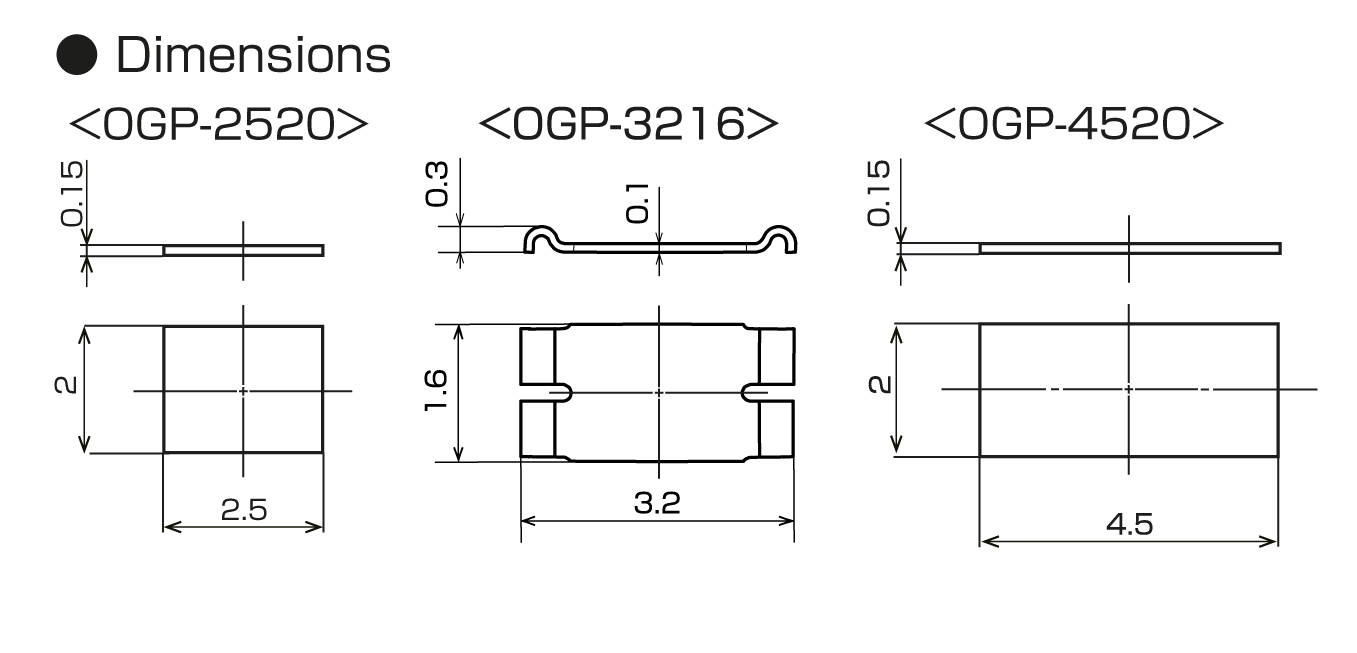

Dimensionen Zeichnung OGP

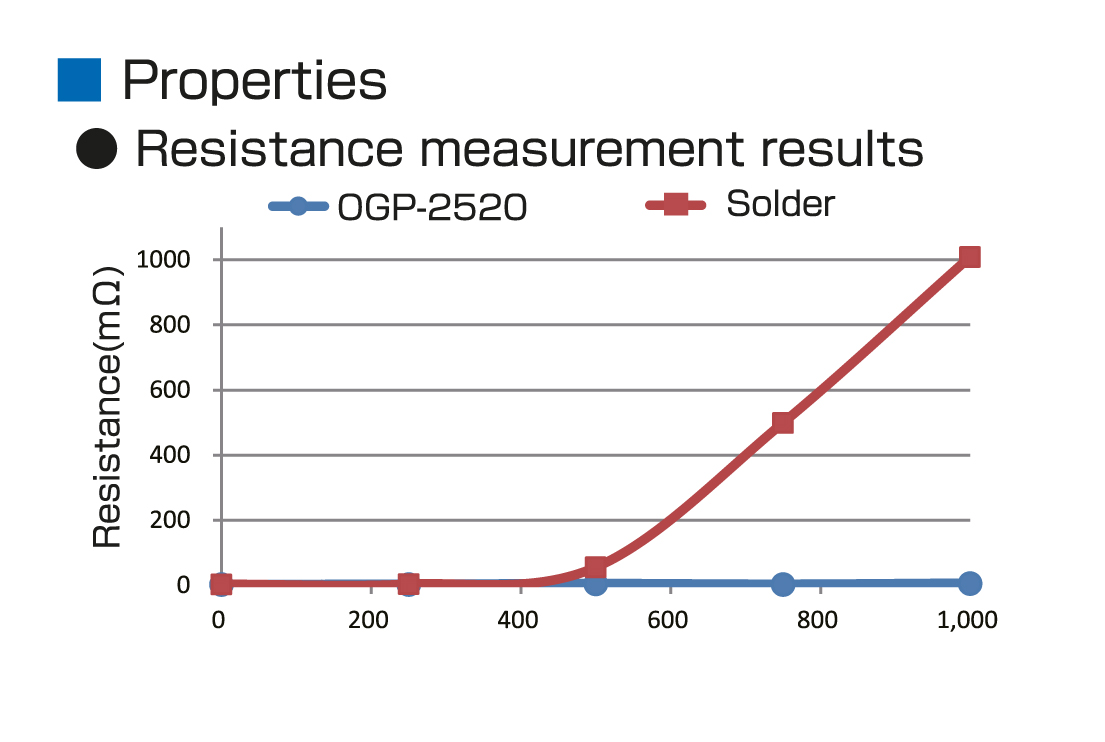

OGP Resistance measurement results
Anwendungsbeispiel OGP

Download

Data sheet with all relevant information on dimensions, material, and electrical properties. Ideal for design, selection, and comparison.

Download PDF

Further data sheets, test reports, and 3D drawings can be found in the download area of Kitagawa Industries.
