HIGH µ FERRITE CLAMP / KRFC
Split ferrite clamp for intermediate frequency range from 3 to 50 MHz.
KRFC Series / High μ Ferrite Clamp
Split ferrite clamp for intermediate frequency range from 3 to 50MHz.
Features
- Effective for suppression both of conducted noise up to 30MHz and radiated noise over 30MHz.
- Split ferrite clamp with plastic housing enables to attach assembled cable and cables with connector.
- Cable tie can assist to hold electric wires and enables the product to be fixed to wire harness. (Excluding KRFC-4).
- Wire guiding system prevent wires from being pinched when winding assembly.
Material
- Ferrite Core：Soft ferrite
- Housing：PA66（Color：natural／Flammability：UL94V-0）
Ausführungen
| Part No. | A | B | C | D | Applicable cable diameter | Impedance Ω/100MHz (1 turn) |
|---|---|---|---|---|---|---|
| KRFC-4 | 13.7 | 13.5 | 27.5 | - | Ø 3.5 ~ 4.5 | ≧ 70 |
| KRFC-6 | 18.1 | 18.4 | 31.5 | 35.5 | Ø 5.5 ~ 6.5 | ≧ 110 |
| KRFC-8 | 20.1 | 20.4 | 31.5 | 35.5 | Ø 7.5 ~ 8.5 | ≧ 80 |
| KRFC-9 | 20.1 | 20.4 | 31.5 | 35.5 | Ø 8.5 ~ 9.5 | ≧ 80 |
| KRFC-10 | 26.3 | 26.4 | 32.4 | 37.2 | Ø 9.5 ~ 10.5 | ≧ 120 |
| KRFC-13 | 29.1 | 29.4 | 31.5 | 36.3 | Ø 12.5 ~ 13.5 | ≧ 105 |
| KRFC-15※1 | 36.1 | 40.1 | 42.8 | 52.3 | MAX Ø 15.5 | ≧ 221 |
| KRFC-26※1 | 52.8 | 52.1 | 44.8 | 54.3 | MAX Ø 26 | ≧ 196 |
Impedance vs. frequency

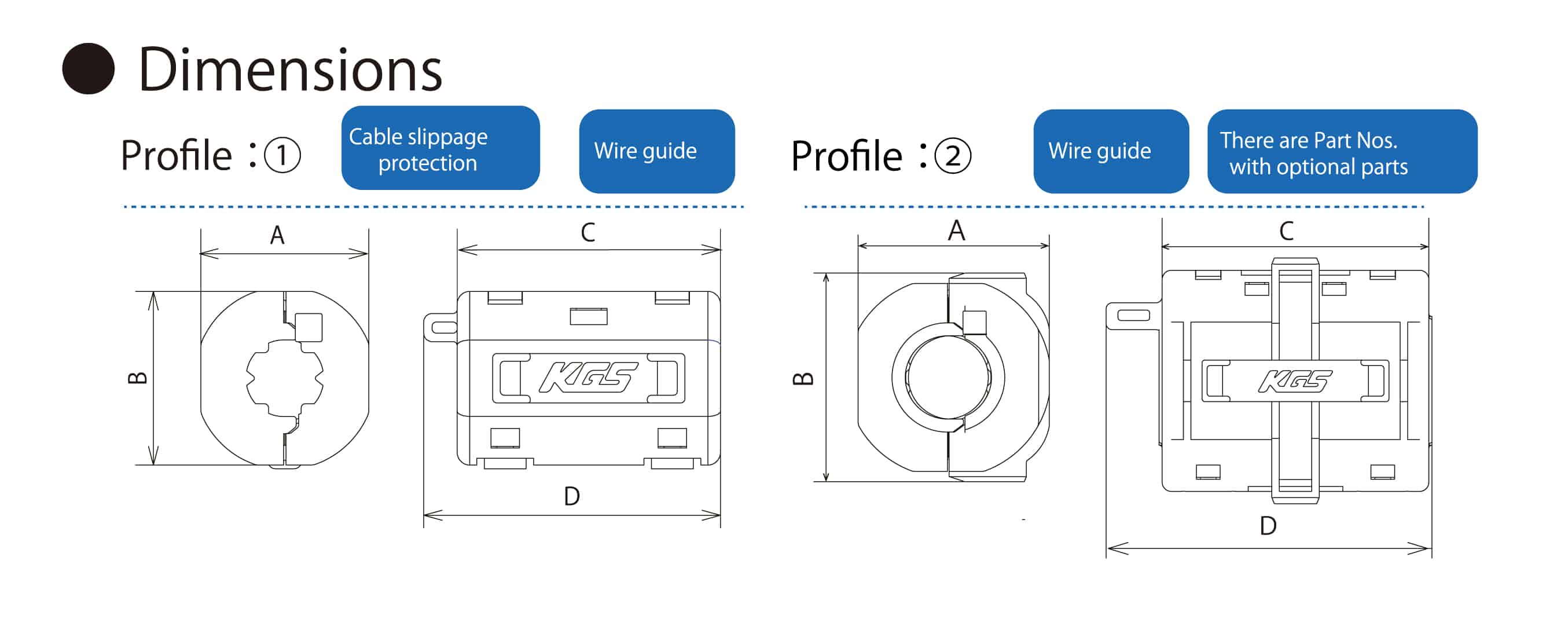

Unit: mm
