FPC CORE/GFPC
Suitable solutions for FPC noise problems
GFPC Series / Ferrit
Suitable solutions for FPC noise problemsAusführungen
Features
- Provided with 3 mm and 5 mm and 2.3 mm thickness types.
- Effective filtering performance for emission noise from FPC.

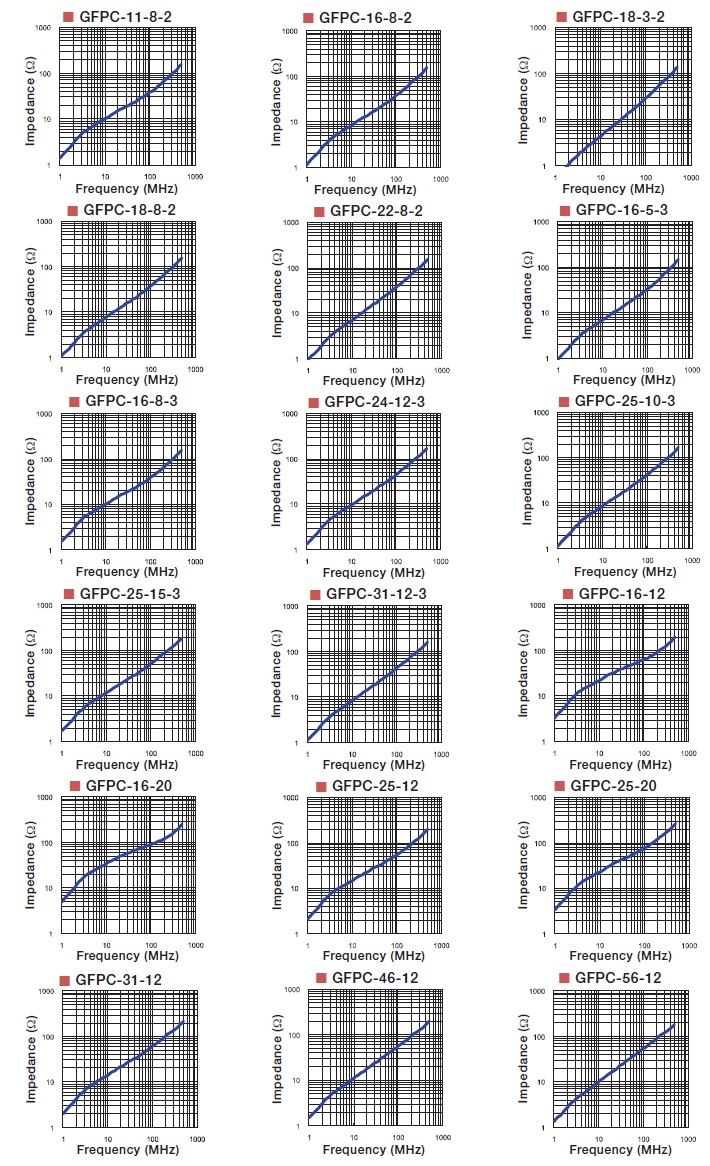

| Part No. | Profile | A | B | C | D | E | Impedance*Ω/100MHz（1turn) |
|---|---|---|---|---|---|---|---|
| GFPC-11-8-2 | ① | 11 | 0.7 | 2.3 | 8.0 | 9.0 | ≧ 25 |
| GFPC-16-8-2 | ① | 15.5 | 0.7 | 2.3 | 8.0 | 12.0 | ≧ 25 |
| GFPC-18-3-2 | ① | 18.0 | 0.7 | 2.3 | 3.0 | 14.5 | ≧ 20 |
| GFPC-18-8-2 | ① | 18.0 | 0.7 | 2.3 | 8.0 | 14.5 | ≧ 25 |
| GFPC-22-8-2 | ① | 21.5 | 0.7 | 2.3 | 8.0 | 18.0 | ≧ 25 |
| GFPC-16-5-3 | ① | 16.0 | 0.5 | 3.0 | 5.0 | 11.5 | ≧ 20 |
| GFPC-16-8-3 | ① | 16.0 | 0.5 | 3.0 | 8.0 | 11.5 | ≧ 25 |
| GFPC-24-12-3 | ② | 23.3 | 0.9 | 3.0 | 12.0 | 20.0 | ≧ 30 |
| GFPC-25-10-3 | ② | 25.5 | 0.8 | 3.0 | 10.0 | 21.5 | ≧ 25 |
| GFPC-25-15-3 | ② | 25.5 | 0.8 | 3.0 | 15.0 | 21.5 | ≧ 35 |
| GFPC-31-12-3 | ② | 31.0 | 1.0 | 3.0 | 12.0 | 27.0 | ≧ 30 |
| GFPC-16-12 | ① | 16.0 | 0.5 | 5.0 | 12.0 | 11.5 | ≧ 45 |
| GFPC-16-20 | ① | 16.0 | 0.8 | 5.0 | 20.0 | 11.5 | ≧ 60 |
| GFPC-25-12 | ① | 24.5 | 0.5 | 5.0 | 12.0 | 20.0 | ≧ 35 |
| GFPC-25-20 | ① | 24.5 | 0.5 | 5.0 | 20.0 | 20.0 | ≧ 50 |
| GFPC-31-12 | ① | 31.0 | 0.5 | 5.0 | 12.0 | 27.0 | ≧ 40 |
| GFPC-46-12 | ① | 46.0 | 0.5 | 5.0 | 12.0 | 41.5 | ≧ 40 |
| GFPC-56-12 | ① | 56.2 | 0.5 | 5.0 | 12.0 | 52.4 | ≧ 35 |
Unit: mm
