CKS CLAMP / CKS
CKS / Clamp CKS
Snap-mount clamp applicable for thick panels (0.5~4.1mm)
Features
- Box-structured lock prevents side slippage at the fastening.
- Applicable to panel thickness from 0.5 mm (L-type) to 4.1 mm (H-type)
Material
- Nylon 66 (Color: Grey)
Ausführungen

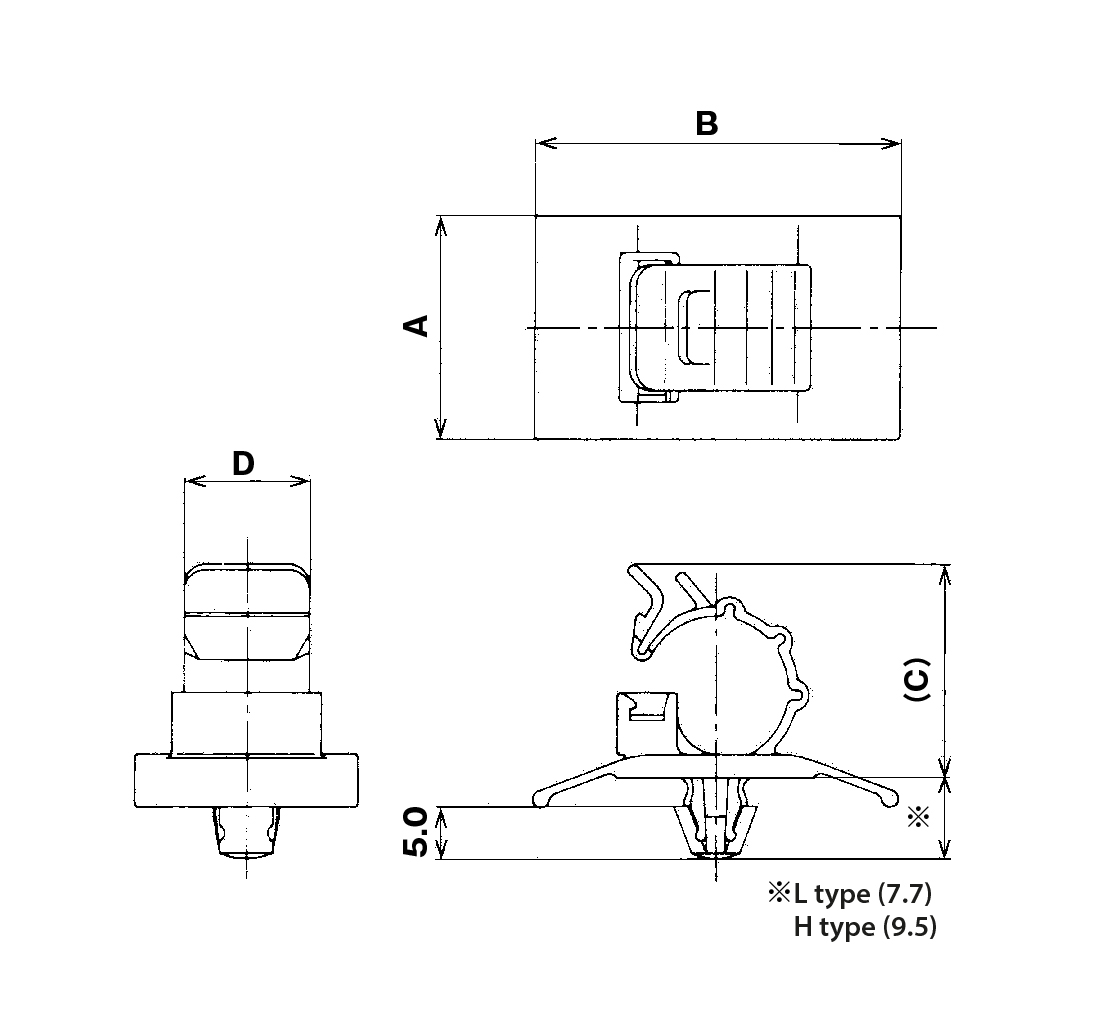

Part No. | A | B | (C) | D | Max. bundle diameter | Mounting hole size | Panel thickness | Std. Package |
---|---|---|---|---|---|---|---|---|
CKS-05-L | 13.8 | 23.2 | 12.8 | 8.5 | Ø 5.4 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-05-H | 13.8 | 23.2 | 12.8 | 8.5 | Ø 5.4 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-07-L | 15.1 | 25.0 | 15.1 | 9.8 | Ø 6.2 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-07-H | 15.1 | 25.0 | 15.1 | 9.8 | Ø 6.2 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-10-L | 17.3 | 28.4 | 19.7 | 12.0 | Ø 9.8 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-10-H | 17.3 | 28.4 | 19.7 | 12.0 | Ø 9.8 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-13-L | 19.3 | 32.0 | 25.6 | 14.0 | Ø 14.4 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-13-H | 19.3 | 32.0 | 25.6 | 14.0 | Ø 14.4 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-16-L | 21.3 | 35.0 | 26.2 | 16.0 | Ø 17.5 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-16-H | 21.3 | 35.0 | 26.2 | 16.0 | Ø 17.5 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-20-L | 23.3 | 37.0 | 30.8 | 18.0 | Ø 20.0 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-20-H | 23.3 | 37.0 | 30.8 | 18.0 | Ø 20.0 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
CKS-26-L | 31.4 | 46.0 | 40.75 | 24.0 | Ø 28.0 | Ø 6.4 +00.2 | -L type 0.5 ∼ 2.3 -H type 2.3 ∼ 4.1 | 100 pcs |
Unit:mm
