ALUMINIUM FRAME FASTENER / ALFF
ALFF / Aluminium Frame Fastener
Accessory that mounts onto aluminium frame for band, clamp, and fastener
Features
- It enables fixing by being inserted into an aluminum frame and rotated.
- Fixing is performed by cable tie inserted into back and forth and around it.
- Installation of fastener such as clamp is possible onto the top face.
Material
- Polypropylen (Color: Natural）
Ausführungen

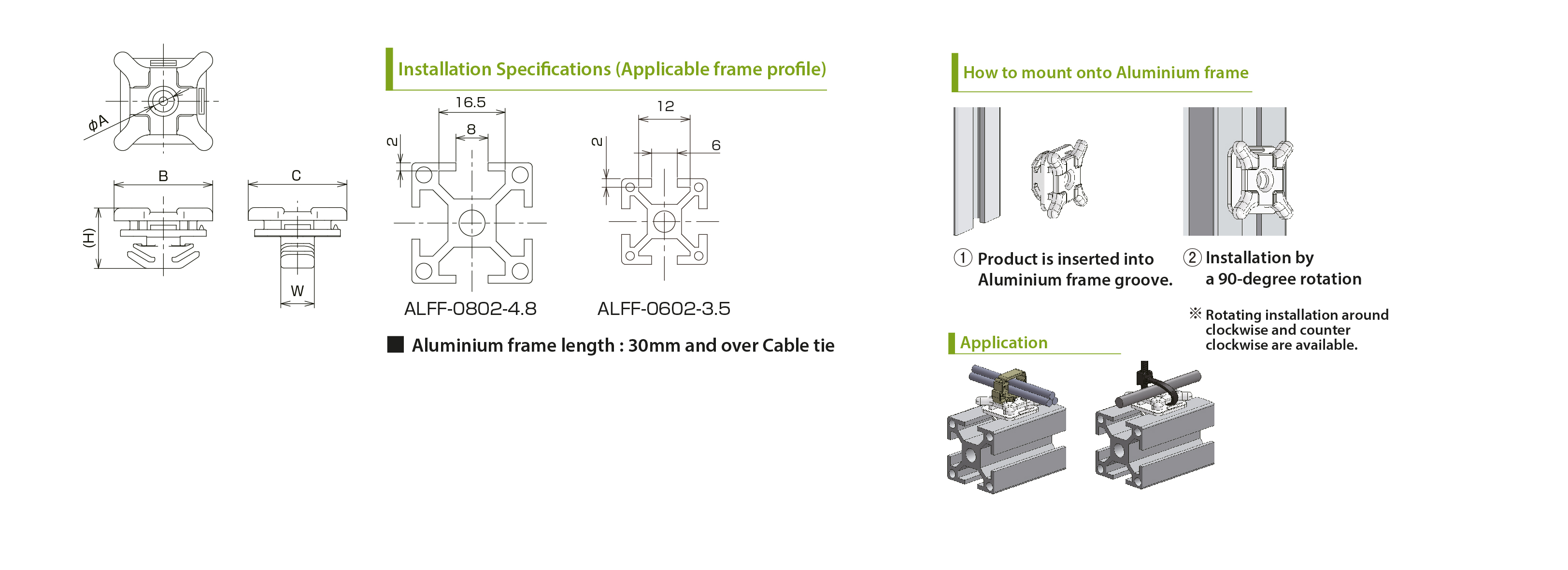

| Part No. | A | B | C | (H) | W |
|---|---|---|---|---|---|
| ALFF-0802-4.8 | 5 | 23 | 23 | 14.1 | 7.8 |
| ALFF-0602-3.5 | 3.5 | 16 | 16 | 11.1 | 5.8 |
Unit:mm
APPLICABLE FASTENER SPECIFICATIONS
| Part No. | Cable tie width | Cable tie thickness | Mounting hole diameter | Panel thickness |
|---|---|---|---|---|
| ALFF-0802-4.8 | ≤ 7.4 mm | ≤ 1.9 mm | Ø 4.8 | 2.0 |
| ALFF-0602-3.5 | ≤ 5.2 mm | ≤ 1.6 mm | Ø 3.5 | 1.6 |
Unit:mm
