WIRE MOUNT / XDM-8 & XDM-9
XDM / Wire Mount
Clip with side slot for cableAusführungen
Features
- Can be mounted with adhesive tape
Material
- Nylon 66 (Color: Natural)
- For V0 type, “V0” is added to the end of the part No. (With regard to lot size and lead time, please contact us.)
XDM-8 & XDM-9
| Part No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| XDM-8 | 25.4 | 6.5 | 15.5 | 11.6 | 7.8 | 11.3 |
| XDM-9 | 25.2 | 12.7 | 25.2 | 11.6 | 7.6 | 11.0 |
Unit:mm

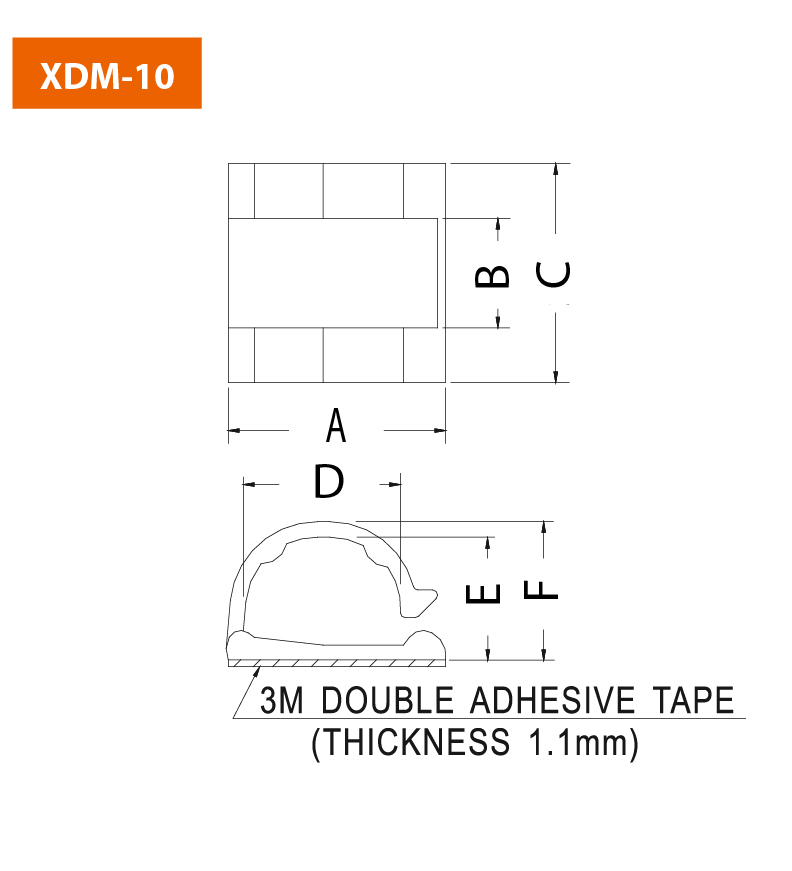

WIRE MOUNT / XDM-10
XDM-10
| Part No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| XDM-10 | 25.4 | 12.7 | 25.4 | 18.2 | 12.5 | 16.0 |
Unit: mm
WIRE MOUNT / XDM-11
XDM-11
| Part No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| XDM-11 | 18.9 | 9.7 | 11.8 | 1.3 | 6.5 | Ø 4.5 |
Unit:mm
Download
Data sheet with all relevant information on dimensions, material, and electrical properties. Ideal for design, selection, and comparison.
