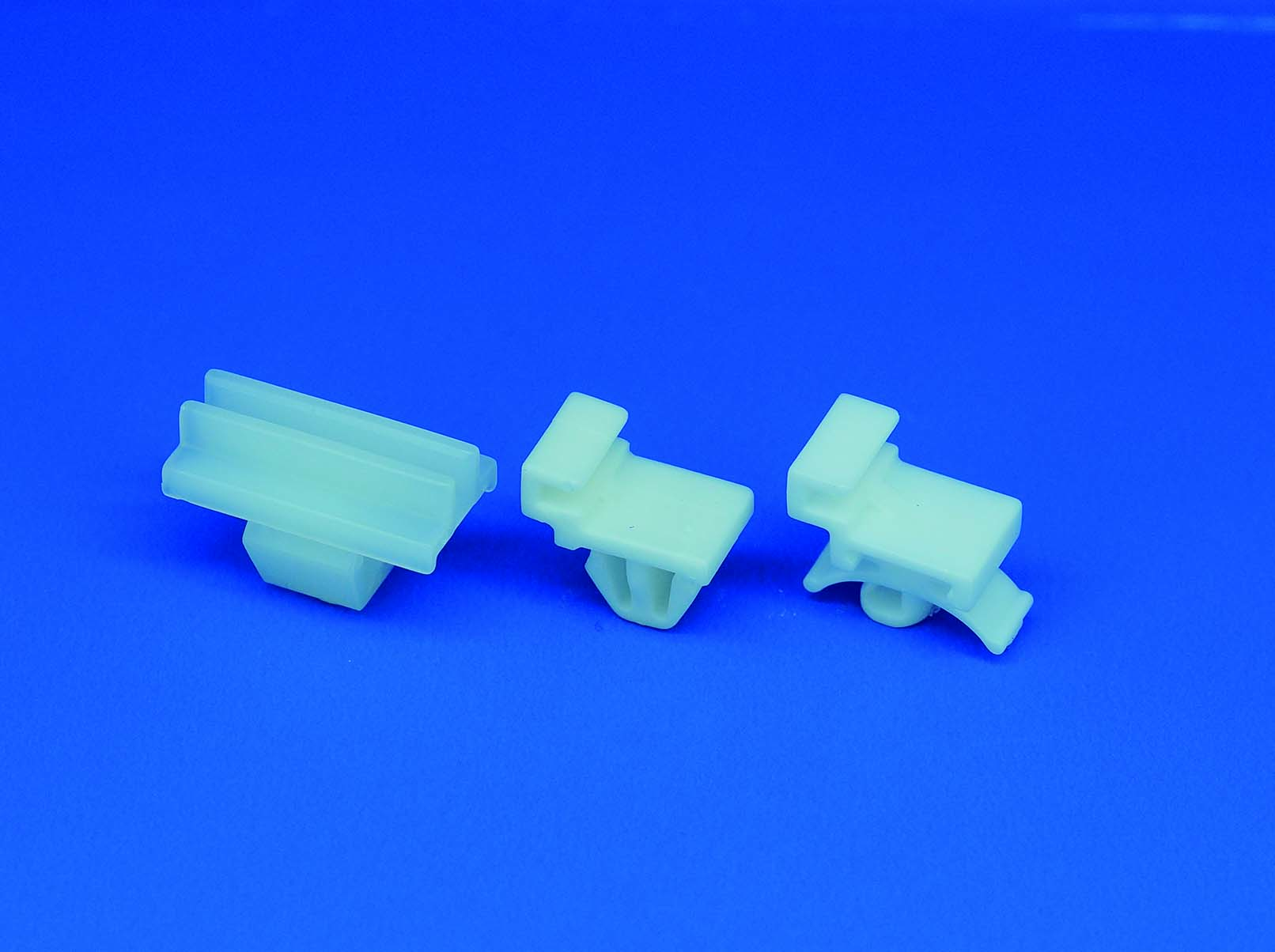

CARD FIXER / UEGR RE-USE CARD FIXER / RUEGR-08Y-V0
UEGR & RUEGR / Card Fixer
PCB guide for limited spaceAusführungen
Features
- Low-cost and space saving card guide.
- Reusable type, requires no tools for mount/dismounting.
Material
- Nylon66 (Farbe: Weiß)
| Part No. | A | B | C | D | E | F | G | H | Panel thickness | Std. Package |
|---|---|---|---|---|---|---|---|---|---|---|
| UEGR-08-0 | 8 | 5.5 | 1.6 | 4.6 | 10.1 | 7.1+ 0 0.1 | □5.5+ 0 0.1 | R0.8 | 1∼2 | 1000 pcs. |
| UEGR-19-0 | 19 | 4.7 | 2.5 | 5.5 | 12.5 | 9.8+ 0 0.1 | □8+ 0 0.1 | R0.9 | 0.8∼1.2 | 1000 pcs. |
| UEGR-08Y | 12.8 | 1.6 | 3.0 | 6.3 | 12.5 | 7.1+ 0 0.1 | □5.5+ 0 0.1 | R0.8 | 1.5±0.1 | 500 pcs. |
Unit : mm

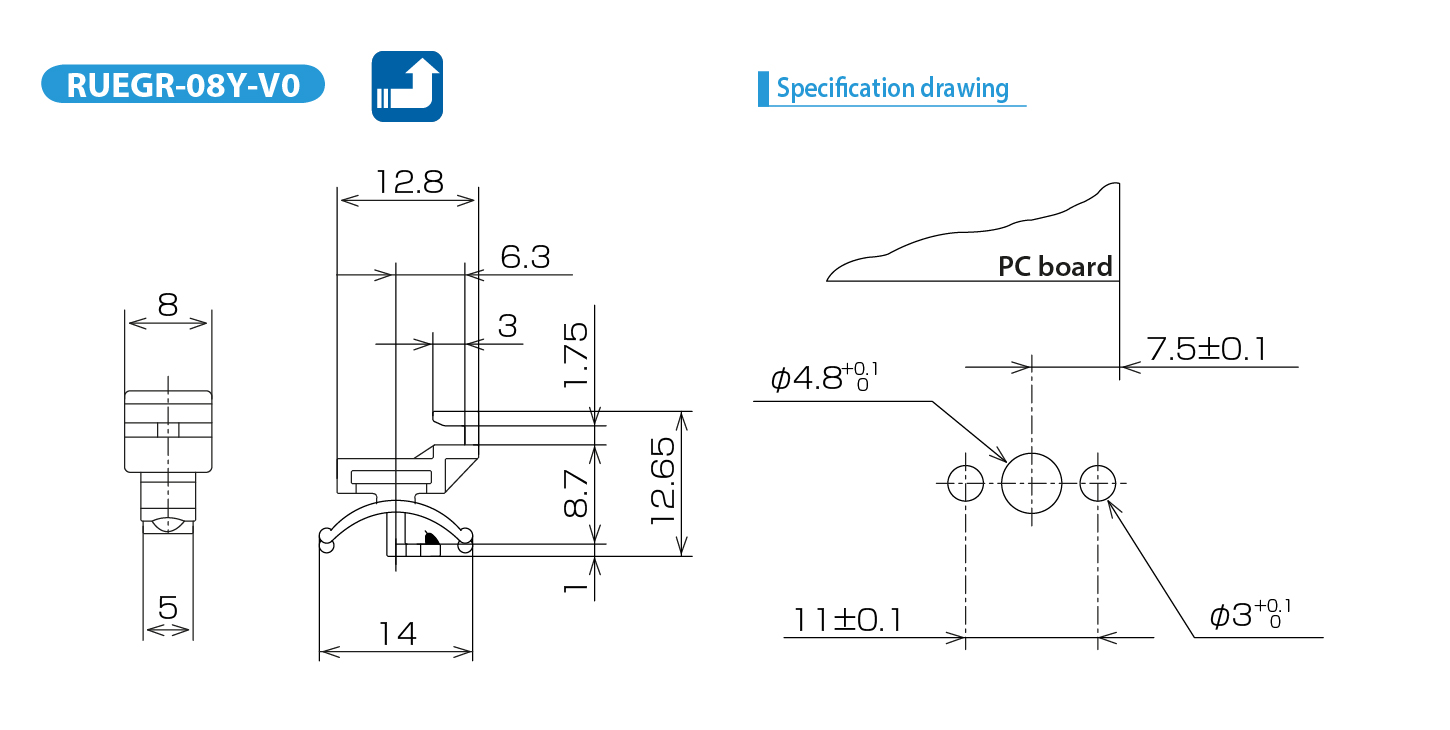

| Part No. | Panel thickness | Std. Package |
|---|---|---|
| RUEGR-08Y-V0 | 0.8∼2.0 | 1000 pcs. |
Unit : mm
