MINI CLAMP / UAMS
UAMS / Mini Clamp
Snap-mount mini clamp
Features
- Space-saving compact type.
Material
- Nylon 66 (Color: Natural, Black※1)
- ※1 Black product has “-2” at the end of the part No. ※2 For V0 type, “V0” is added to the end of the part No. ( With regard to lot size and lead time, please contact us.）
Ausführungen

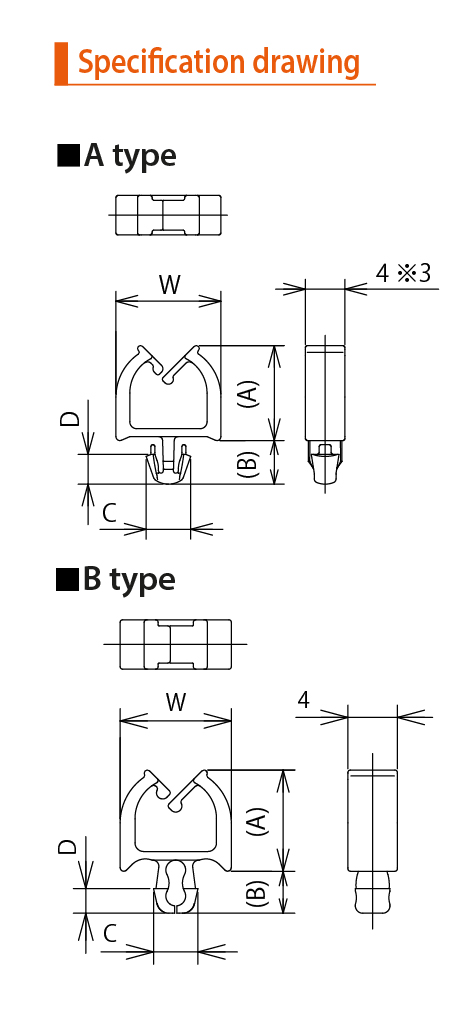

| Part No. | (A) | (B) | C | D | W | Snap type | Mounting hole size | Panel thickness | Std. Package |
|---|---|---|---|---|---|---|---|---|---|
| UAMS-02WL-0 | 4.4 | 3.2 | 4.0 | 2.5 | 8.2 | A | Ø 3+00.1 | 0.8 ∼ 1.2 | 1000 pcs |
| UAMS-02WH-2 | 4.4 | 3.6 | 4.0 | 2.5 | 8.2 | A | Ø 3+00.1 | 1.2 ∼ 1.6 | 1000 pcs |
| UAMS-02-0 | 3.9 | 3.0 | 2.2 | 1.5 | 7.0 | B | Ø 1.9 -00.1 | 1.6 ± 0.1 | 1000 pcs |
| UAMS-03-0 | 6.0 | 3.1 | 2.2 | 1.5 | 7.0 | B | Ø 1.7 +00.1< | 1.6 ± 0.1 | 1000 pcs |
| UAMS-03-W | 6.0 | 3.0 | 2.2 | 1.5 | 9.0 | B | Ø 1.7 +00.1< | 1.6 ± 0.1 | 1000 pcs |
| UAMS-05-0 | 8.2 | 3.4 | 3.6 | 2.0 | 9.0 | B | Ø 3 ± 0.05 | 1.2 ∼ 1.6 | 1000 pcs |
| UAMS-05-2 | 8.7 | 2.9 | 3.6 | 2.0 | 9.0 | B | Ø 3 ± 0.05 | 1.0 ∼ 1.2 | 1000 pcs |
| UAMS-05S-2 | 7.7 | 5.0 | 4.4 | 3.4 | 9.0 | A | Ø 3 +00.05 | 1.6 +00.15 | 1000 pcs |
| UAMS-05SN | 7.9 | 3.9 | 4.4 | 3.0 | 9.0 | A | Ø 3 +00.05 | 1.0 ± 0.2 | 1000 pcs |
| UAMS-05SN-W | 7.9 | 3.9 | 4.4 | 3.0 | 11.0 | A | Ø 3 +00.05 | 1.0 ± 0.2 | 1000 pcs |
| UAMS-05L-0 | 7.7 | 4.9 | 4.5 | 3.5 | 9.0 | A | Ø 3 +00.1 | 1.6 ± 0.1 | 500 pcs |
| UAMS-07-0 | 9.6 | 4.4 | 4.5 | 3.0 | 10.6 | A | Ø 3.5 ± 0.1 | 1.6 ± 0.1 | 1000 pcs |
| UAMS-09-0 | 11.7 | 4.4 | 4.5 | 3.0 | 11.8 | A | Ø 3.5 ± 0.1 | 1.6 ± 0.1 | 500 pcs |
| UAMS-11-0 | 13.5 | 4.4 | 4.5 | 3.0 | 11.8 | A | Ø 3.5 ± 0.1 | 1.6 ± 0.1 | 1000 pcs |
UL1565 recognized product
Unit:mm
