TOGGLE FIXER / TFR
TFR / Toggle Fixer
Features
- Spacing and fixation for panels and components.
- Locking tabs open to secure by teghtening the screw.
Ausführungen

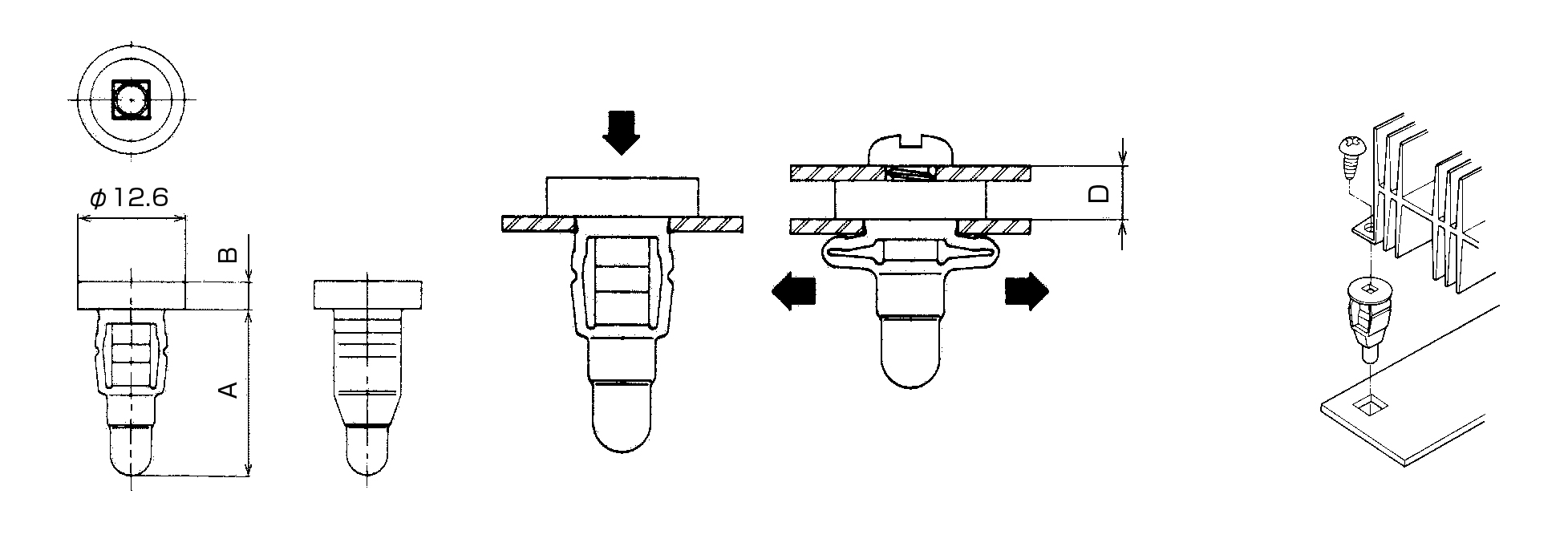

| Part No. | Screw diameter | Screw length (Nominal length) | A | B | Mounting hole size | Panel thickness | Std. Package |
|---|---|---|---|---|---|---|---|
| TFR-1 | Ø4 | D + 12.5 | 19.4 | 0.8 | □7.9 + 0 0.2 | 0.5∼2.8 | 500 pcs. |
| TFR-3 | Ø4 | D + 12.5 | 19.4 | 3.2 | □7.9 + 0 0.2 | 0.5∼2.8 | 500 pcs. |
| TFR-4 | Ø4 | D + 12.5 | 19.4 | 4.8 | □7.9 + 0 0.2 | 0.5∼2.8 | 500 pcs. |
