RE-USE SPACER / RLS
RLS / RE-USE SPACER
Releasable PCB spacerAusführungen
Features
- Holding and spacing for boards and chassis.
- Easily removed for maintenance and diassembling.
Material
- Nylon 66 (Colour: Natural/ UL94-V0 )

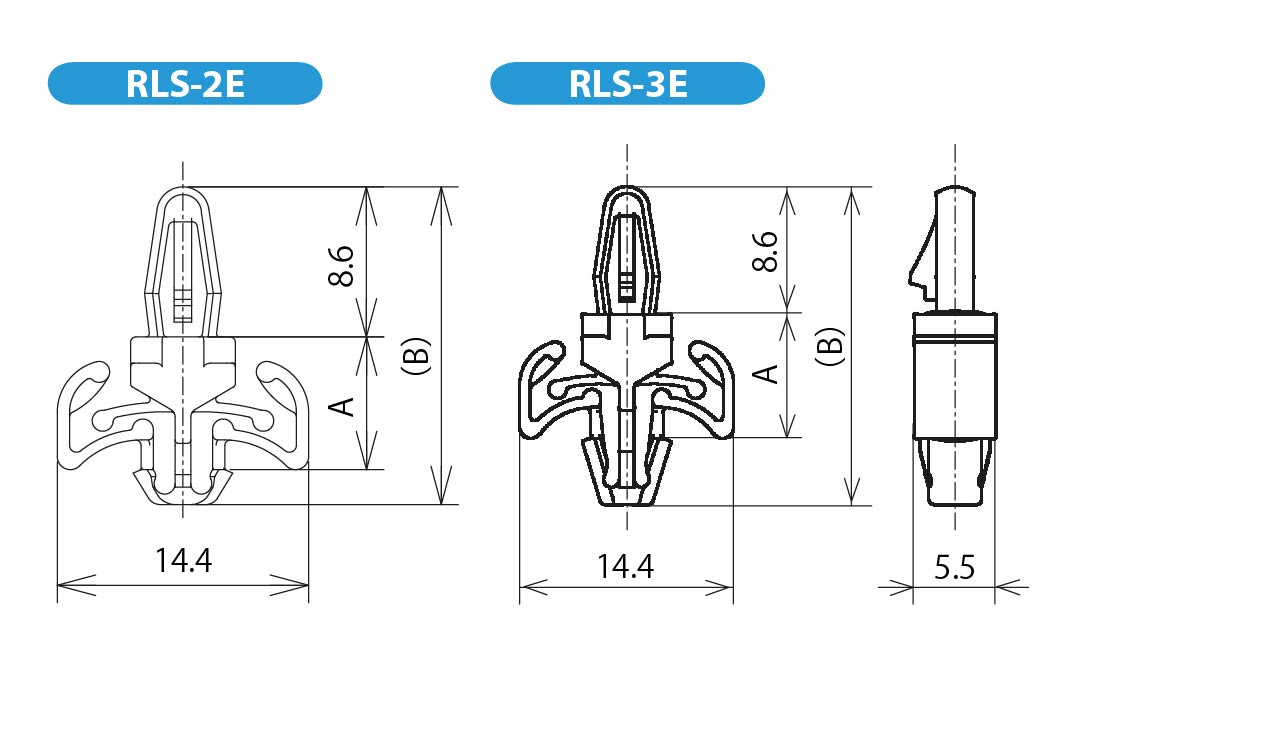

| Part No. | A | (B) | Mounting hole size | Panel thickness | Std. Package |
|---|---|---|---|---|---|
| RLS-2E-V0 | 7.6 | 18.2 | Top Ø4.0+00.2 Bottom Ø4.8+00.2 | Top 1.6~1.8 Bottom 0.8~1.2 | 1000 pcs. |
| RLS-3E-V0 | 8.4 | 21.5 | Top Ø4.0+00.2 Bottom Ø4.8+00.2 | Top 1.6~1.8 Bottom 0.5~1.6 | 1000 pcs. |
Download
Data sheet with all relevant information on dimensions, material, and electrical properties. Ideal for design, selection, and comparison.
