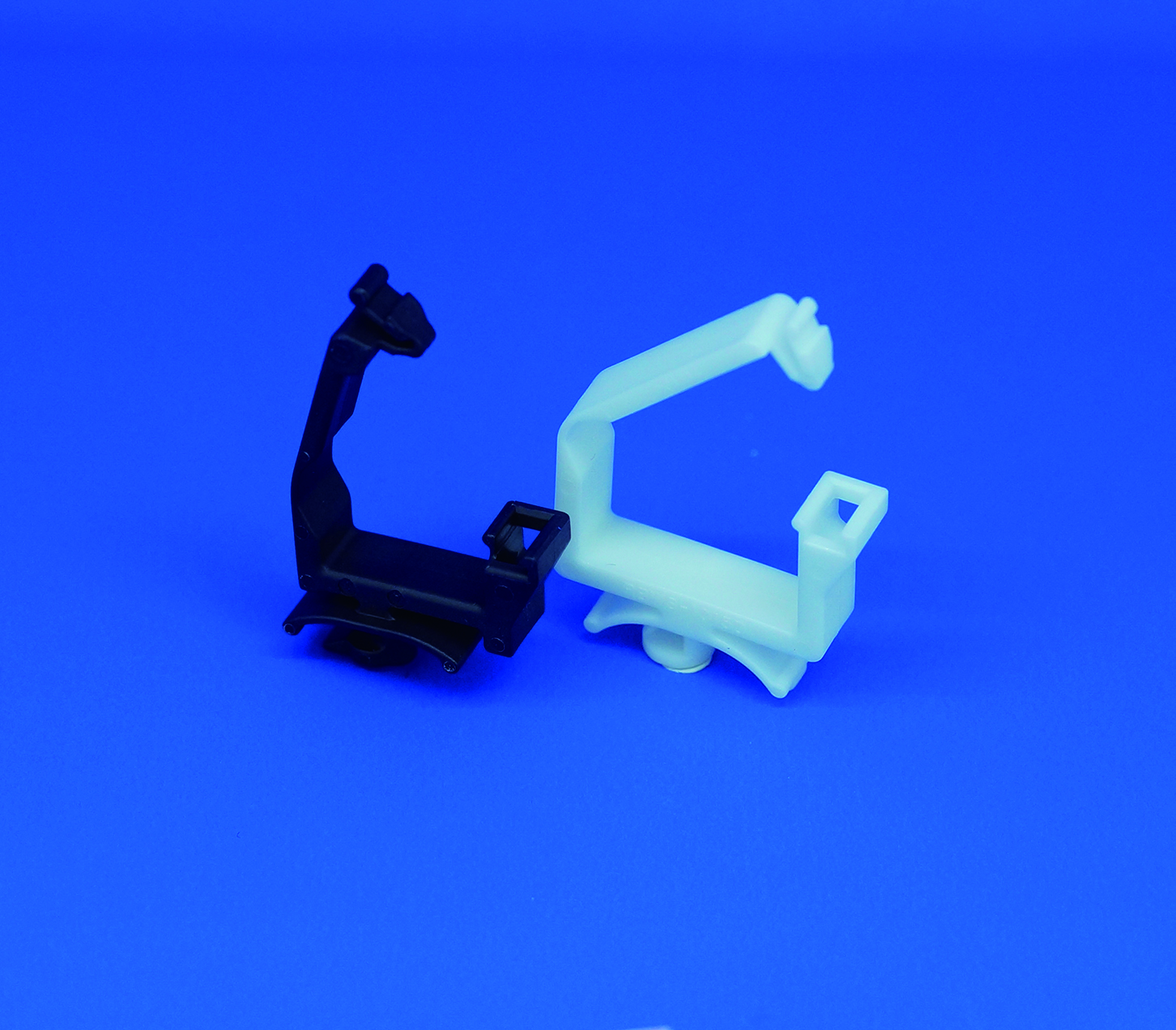

RE-USE CLAMP / RBWS-D & RBWS-TD
RBWS-D & RBWS-TD/ RE-USE Clamp
Releasable cable clamp with minimum protrusion on panel
Features
- Equipped with a new lock for easy fastening and unfastening.
- Dismounted without any tools required.
Material
- Nylon 66 (Color:Natural ※）
- ※ Color of RBWS-1TD-V0BK is black.
Ausführungen
| Part No. | A | B | C | D | (E) | Mounting hole size | Panel thickness | Std. Package |
|---|---|---|---|---|---|---|---|---|
| RBWS-0406D V0 | 1.5 | 6 | 4.5 | 3.7 | 17.13 | Refer to specification drawing | 0.5~1.6 | 500 pcs. |
| RBWS-0510D V0 | 1.5 | 10 | 5.0 | 4.7 | 21.61 | Refer to specification drawing | 0.5~1.6 | 500 pcs. |
| RBWS-1015D V0 | 1.8 | 15 | 6.0 | 9.7 | 31.35 | Refer to specification drawing | 0.5~1.6 | 500 pcs. |
| RBWS-1515D V0 | 1.8 | 15 | 6.0 | 14.7 | 36.35 | Refer to specification drawing | 0.5~1.6 | 500 pcs. |
| RBWS-2020D V0 | 2.0 | 20 | 6.0 | 19.7 | 45.03 | Refer to specification drawing | 0.5~1.6 | 500 pcs. |
| RBWS-1TD-V0 BK | 1.8 | 11 | 6.3 | 4.9 | 29.21 | Refer to specification drawing | 1.5~2.3 | 500 pcs. |
