FCW CLAMP / FCW
FCW / Clamp
Adhesive flat cable clamp that secures one or two cables with a screw optionAusführungen
Features
- Height of approx. 12mm, applicable to limited
- Holds one or two flat cables firmly.
Material
- Nylon 66（Color：Grey） UL94 V-2

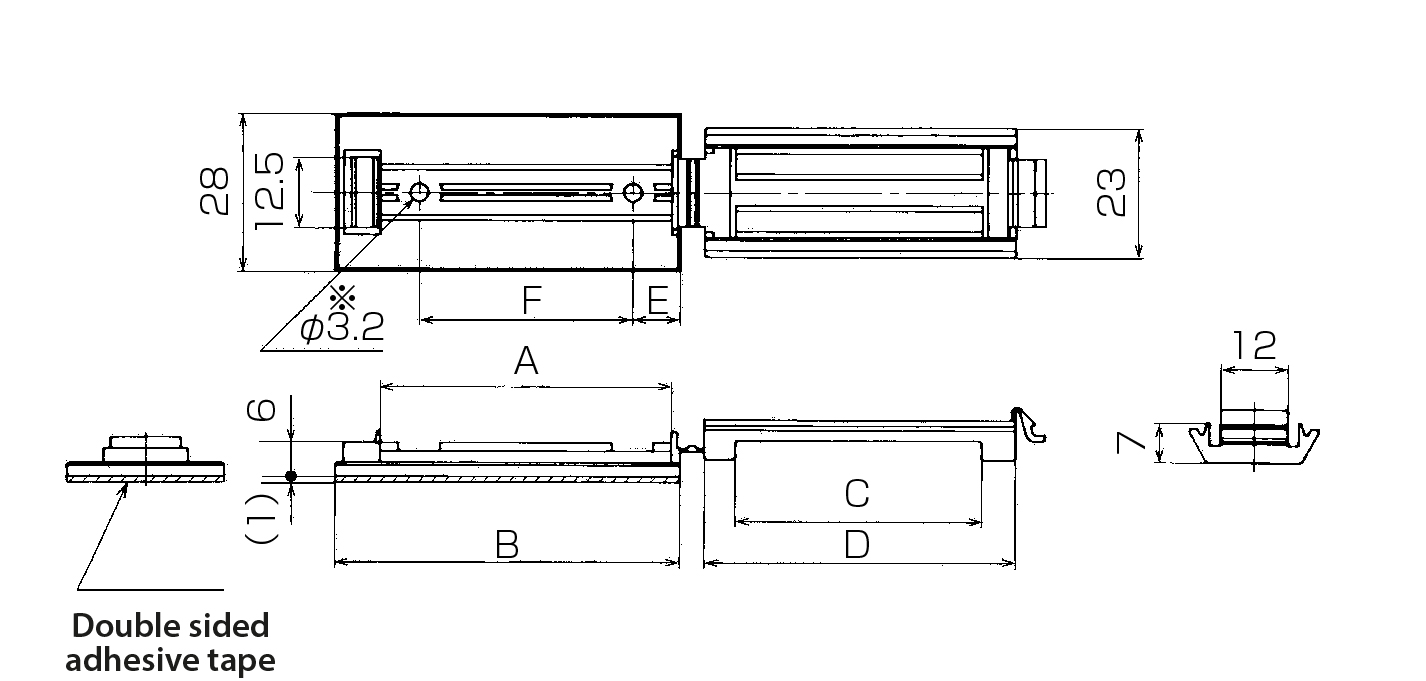

| Part No. | A | B | C | D | E | F | Applicable cable max. width | Applicable cable max. thickness | Std. Package |
|---|---|---|---|---|---|---|---|---|---|
| FCW-52 | 52 | 61.5 | 44 | 55.5 | 8.45 | 38.1 | 51.5 | 2.4 | 50 pcs. |
Download
Data sheet with all relevant information on dimensions, material, and electrical properties. Ideal for design, selection, and comparison.
