CSR / Carbon Rubber
Carbon filled silicone based rubberAusführungen
Features
- Carbon Rubber is a good shielding gasket and an excellent environmental seal.

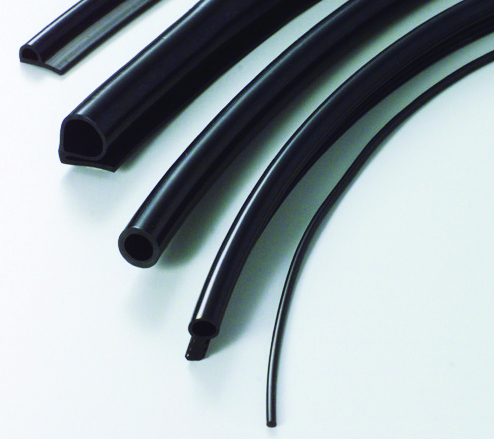

- Excellent formability available in various extruded shapes as shown below.
R Type
| Part No. | A |
|---|---|
| CSR-R-15 | 1.5 |
| CSR-R-20 | 2.0 |
| CSR-R-30 | 3.0 |
| CSR-R-40 | 4.0 |
| CSR-R-50 | 5.0 |
O Type
| Part No. | A | B |
|---|---|---|
| CSR-O-25-15 | 2.5 | 1.5 |
| CSR-O-60-30 | 6.0 | 3.0 |
| CSR-O-65-30 | 6.5 | 3.0 |
| CSR-O-100-65 | 10.0 | 6.5 |
P Type
| Part No. | A | B | C |
|---|---|---|---|
| CSR-P-125-50 | 12.5 | 5.0 | 6.0 |
| CSR-P-170-72 | 17.0 | 7.2 | 7.5 |
| CSR-P-240-77 | 24.0 | 7.7 | 11.0 |
D Type
| Part No. | A | B |
|---|---|---|
| CSR-D-40-15 | 4.0 | 1.5 |
| CSR-D-45-25 | 4.5 | 2.5 |
U Type
| Part No. | A | B | C | D |
|---|---|---|---|---|
| CSR-U-48-48 | 4.8 | 4.8 | 3.2 | 1.6 |
| CSR-U-55-110 | 5.5 | 11.0 | 8.0 | 2.5 |
| CSR-U-80-130 | 8.0 | 13.0 | 9.5 | 3.5 |
| CSR-U-95-130 | 9.5 | 13.0 | 9.5 | 5.0 |
Download
Data sheet with all relevant information on dimensions, material, and electrical properties. Ideal for design, selection, and comparison.
