Oval-shape provides space-saving, lower profile than ring cores.
UL94V-0 rated plastic case with excellent electrical insulation.

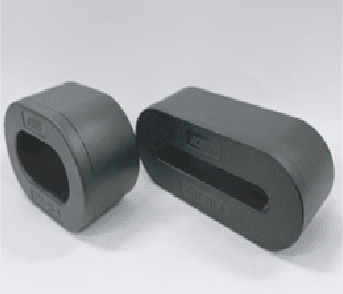

BRE-A / Broad Effect Core

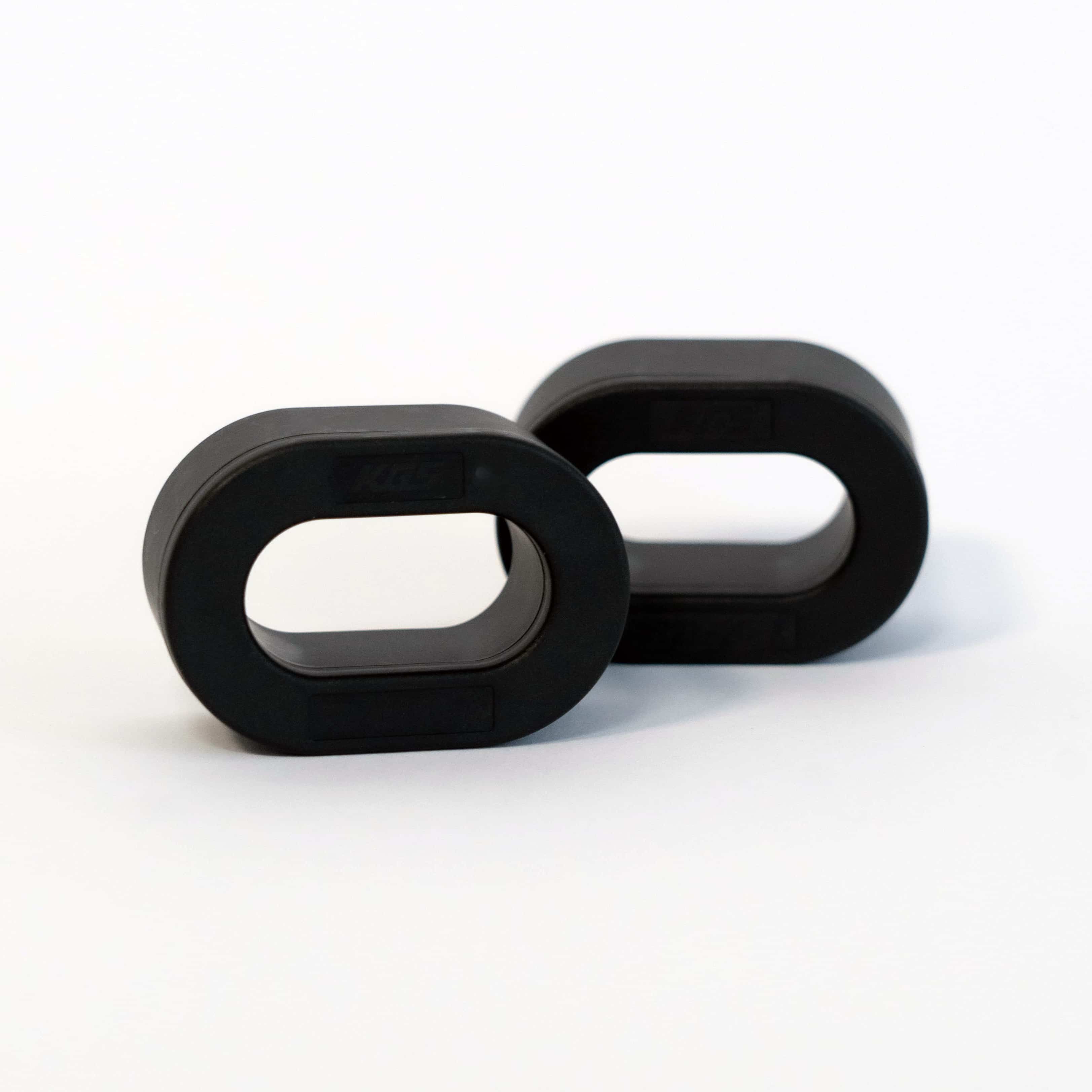

BRE-3721-20-A-79-BK/ Oval Nanocrystalline Alloy CoreAusführungen
Features
- Oval shape offers space saving, lower profile than ring cores.

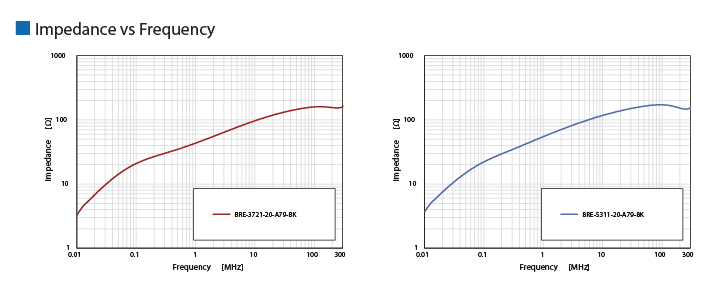

- High impedance, effective in suppressing noise over a wide frequency range.
- Vibration resistance complies with in- vehicle vibration test standard (ISO 16750-3 II).

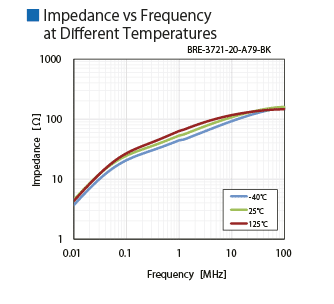

- Low to high temperature stable EMI performance.
- Operating temperature: -40° to +125°C.

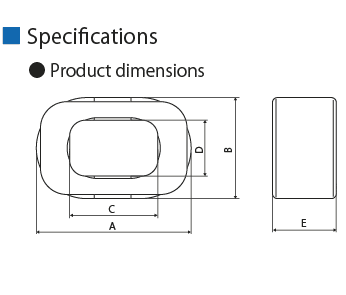

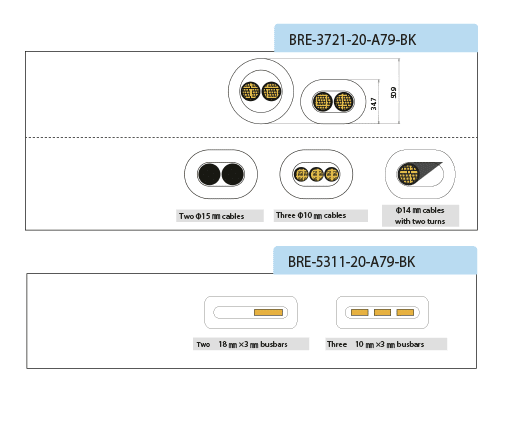

| Product | A | B | C | D | E |
|---|---|---|---|---|---|
| BRE-3721-20-A79-BK | 50.9 | 34.7 | 33.1 | 16.9 | 23.8 |
| BRE-5311-20-A79-BK | 69.8 | 28.3 | 48.5 | 7.0 | 23.8 |
Download
Data sheet with all relevant information on dimensions, material, and electrical properties. Ideal for design, selection, and comparison.
Further data sheets, test reports, and 3D drawings can be found in the download area of Kitagawa Industries. Please note that you are leaving www.kitagawa.de. We accept no liability for external content. Applicable data protection regulations may differ from EU requirements.
Go to download area
