Effective for suppression both of conducted noise upto 30MHz and radiated noise over 30MHz.
With regard to variation of size, please contact our sales department.
KTR / Toroidal Core
Non-split toroidal core for intermediate frequency range from 3 to 50MHz.
Material
- Soft ferrite (Epoxy coating)
Ausführungen
Unit (mm)

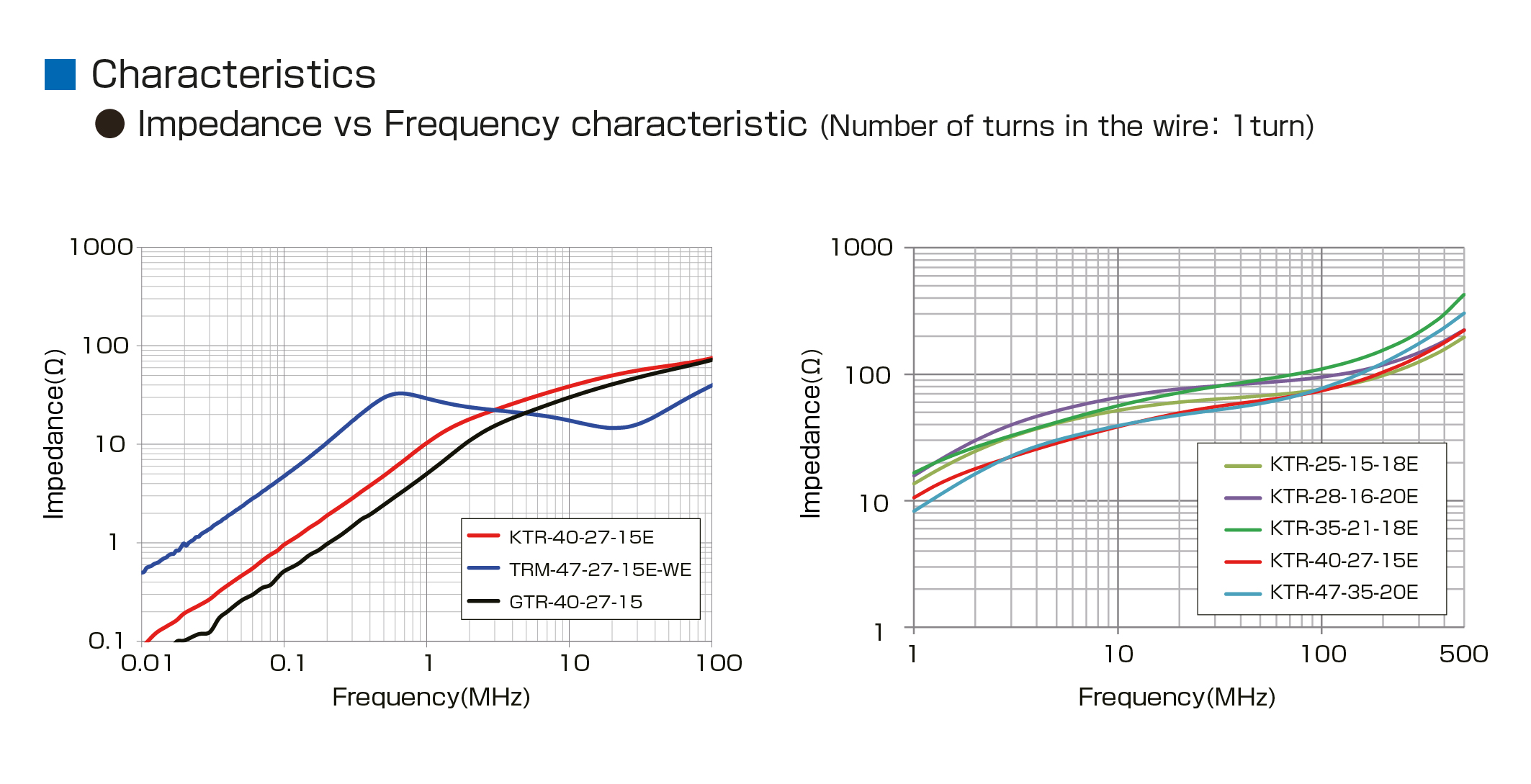

| Part No. | A | B | C | Impedance Ω/100MHz(1turn) |
|---|---|---|---|---|
| KTR-25-15-18E | 26.7 | 13.4 | 19.5 | ≧54 |
| KTR-28-16-20E | 29.7 | 14.4 | 21.6 | ≧65 |
| KTR-35-21-18E | 35.6 | 20.0 | 18.8 | ≧80 |
| KTR-40-27-15E | 41.4 | 26.7 | 15.7 | ≧50 |
| KTR-47-35-20E | 49.1 | 33.1 | 21.6 | ≧54 |
Here you have the possibility to download data sheets, test reports and 3D drawings from the homepage of Kitagawa Industries Co., Ltd.
